1-260mm Width Automatic Ribbon/Tape/Belt/Print Mark Cutter Cutting machine
Model Number:
TMAX-HZX-203Type:
AutomaticInput Power:
2KWDimension(L*W*H):
1480*930*650mmNet Weight:
120KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

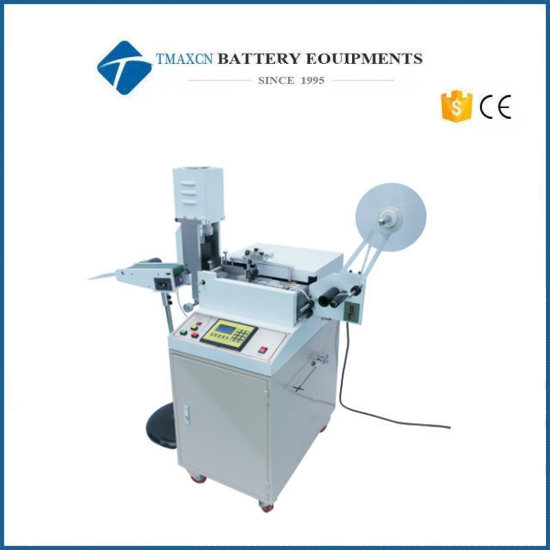

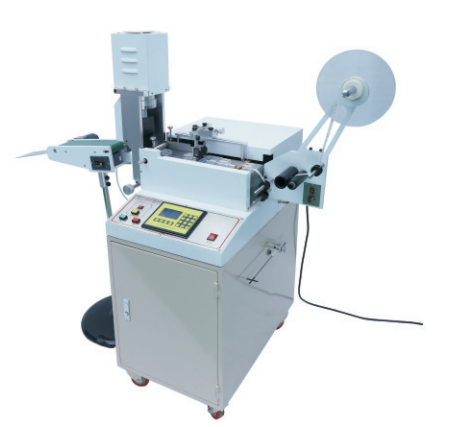

1-260mm Width Automatic Ribbon/Tape/Belt/Print Mark Cutter Cutting machine
Feature

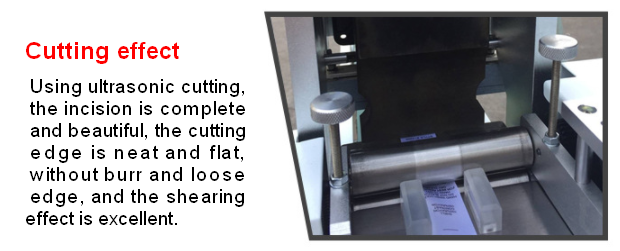

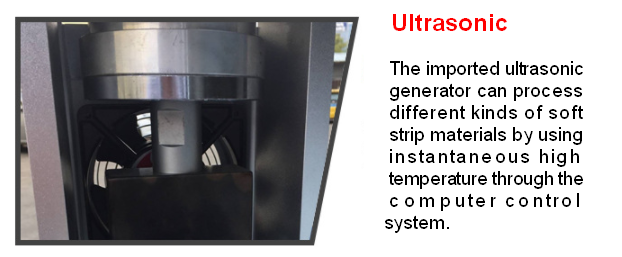

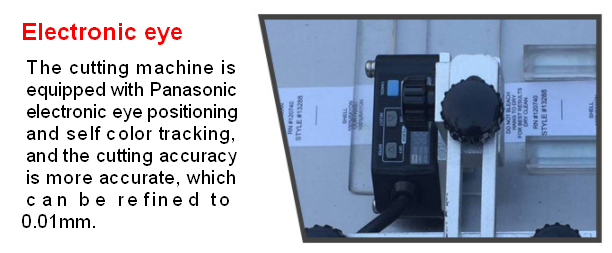

The imported electronic eye of the ultrasonic marking machine is more accurate and fast. In addition, the imported ultrasonic generator can process the material with instantaneous high temperature. The temperature control is stable, the speed is fast, and the incision is smooth without burr. Cut ribbon, satin, nylon tape, cotton belt, cloth belt, printing mark, weaving Mark, non-woven fabric, self-adhesive, PVC trademark, etc.
Materials
Cutting speed:500 times per minute (50mm length,for example).
Cuttable materials: Cutting range: silk ribbon, ribbon, nylon belt, cotton belt, cloth belt, print mark, fabricmark, non-woven fabric, adhesive tape etc.
Specification
|
Voltage |
Power |
Weight |
Width |
Length |
External dimension |
|
110/220V |
2kw |
120kg |
1-260 mm |
1-9999 mm |
1480*930*650mm |
