1-1580mm Width Tape Roll Cutter Cutting Machine
Model Number:
TMAX-HZX-800HType:
AutomaticDimension(L*W*H):
3000*1800*1500mmNet Weight:
750KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

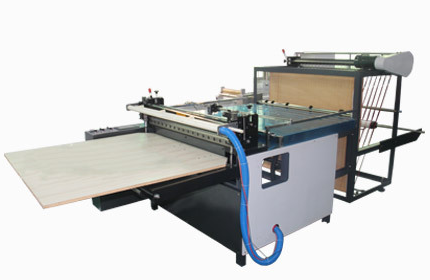

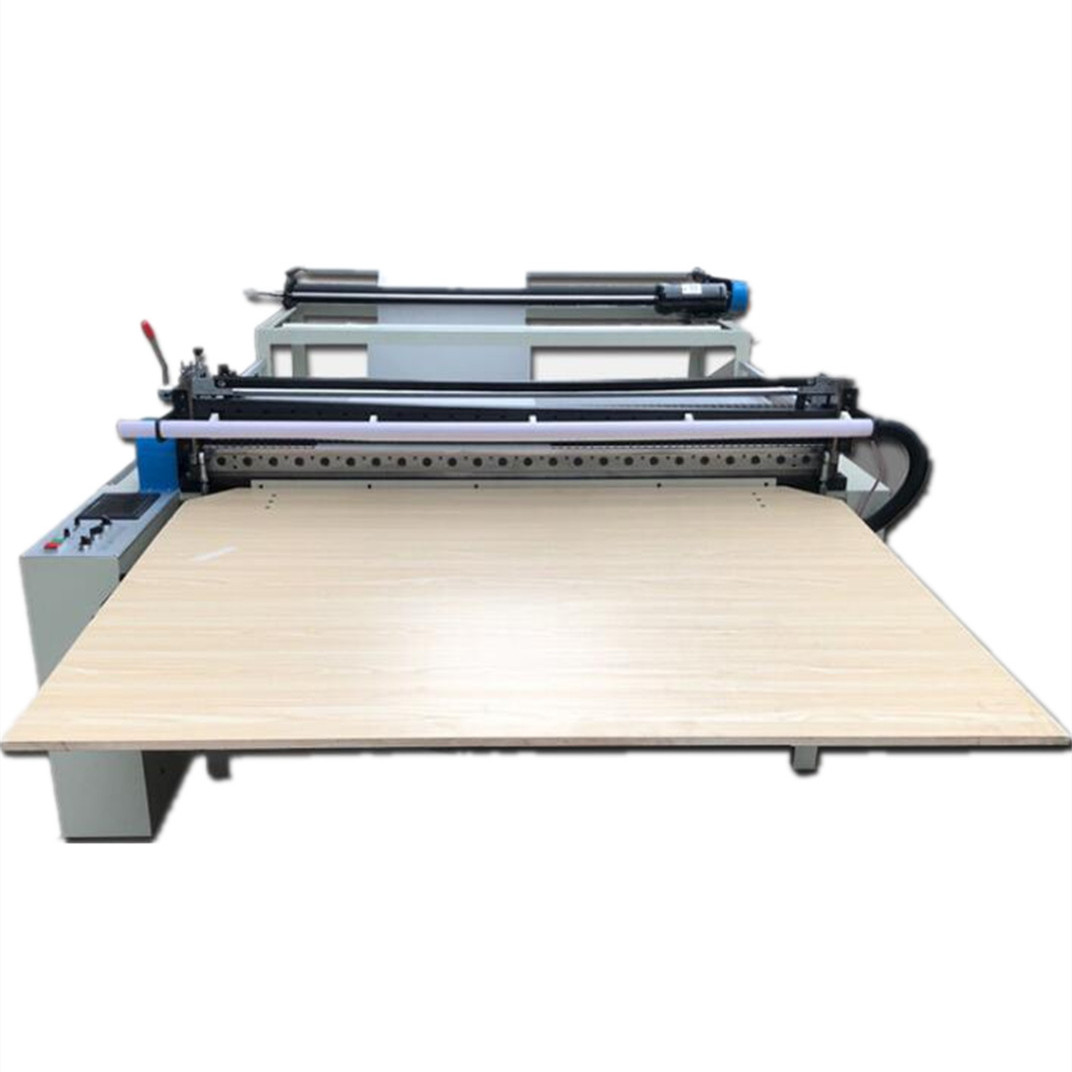

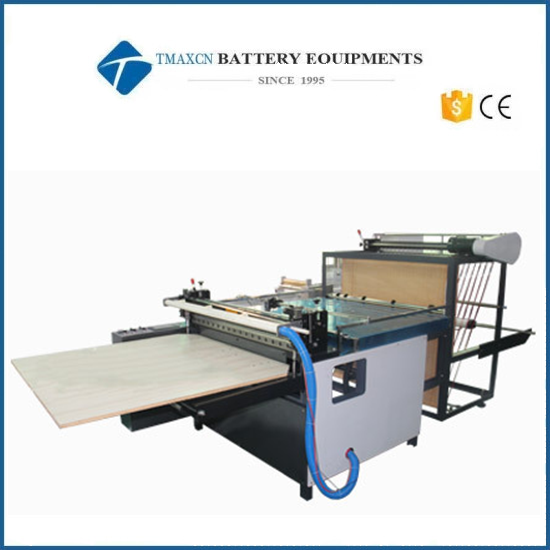

1-1580mm Width Tape Roll Cutter Cutting Machine
Feature
This machine is mainly for the tape rolls were positioned quantitative fixed-length cut, the device uses high-precision stepper motor drive, PLC microcomputer control.

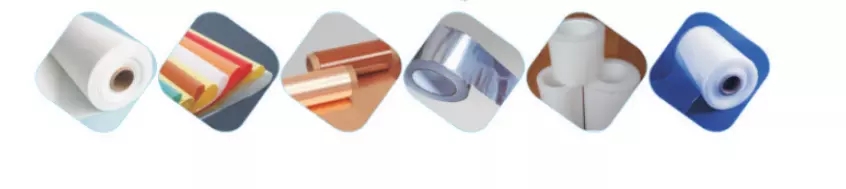

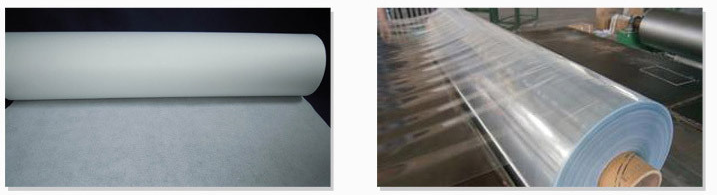

Cuttable materials: PVC film, PE film, non-woven fabric, insulating paper, copper foil, aluminum foil, gold and silver paper, pigment Rainbow paper, positioning laser transfer paper, whiteboard, plastic sheet, etc.
Specification
|
Model |
Cutting Tool |
Speed (mm) |
Weight(kg) |
Cutting Width (mm) |
Cutting Length (mm) |
Precision (mm) |
Cutting Thickness(mm) |
|
HZX-800 |
Upper and lower knives |
5-50 |
800 |
1-780 |
5-50000 |
0.2 |
0.05-0.6 |
|
HZX-1000 |
Upper and lower knives |
5-60 |
850 |
1-980 |
5-50000 |
0.2 |
0.05-0.6 |
|
HZX-1200 |
Upper and lower knives |
5-70 |
1500 |
1-1180 |
5-50000 |
0.2 |
0.05-0.6 |
|
HZX-1400 |
Upper and lower knives |
5-80 |
2000 |
1-1380 |
5-50000 |
0.2 |
0.05-0.6 |
|
HZX-1600 |
Upper and lower knives |
5-90 |
2100 |
1-1580 |
5-50000 |
0.2 |
0.05-0.6 |
