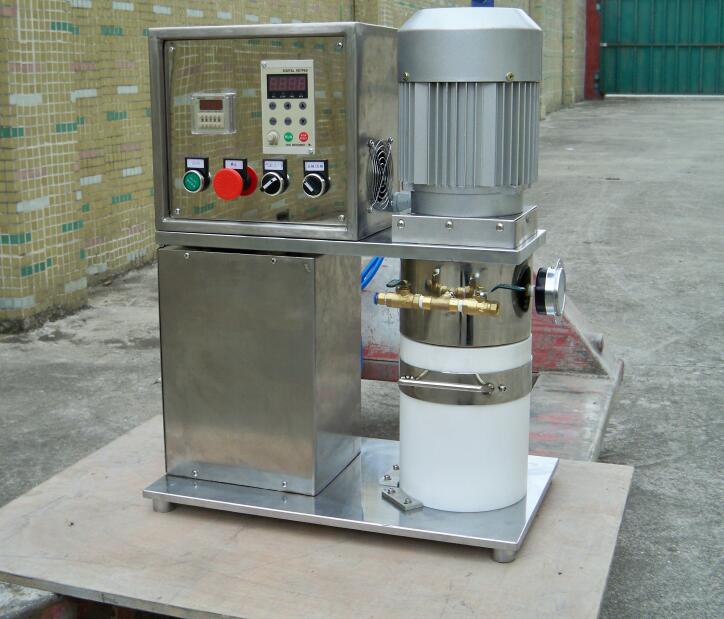

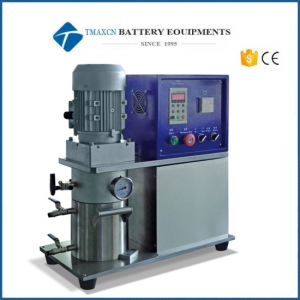

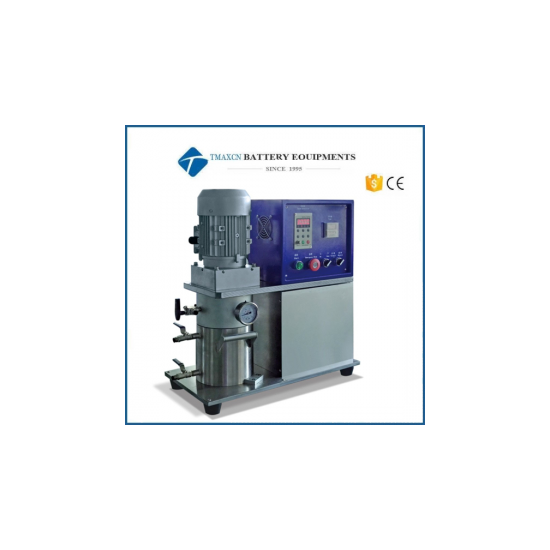

1-10L Vacuum Mixer Mixing Machine For Lab Lithium Battery Making

Model Number:
TMAX-SVM-1L
Type:
Planetary Mixer Machine
Input Power:
750W
Net Weight:
60kg
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Wechat:13506084915

DESCRIPTION

1-10L Vacuum Mixer Mixing Machine For Lab Lithium Battery Making

1 This SVM-1L system Vacuum Mixer is a high efficient equipment with vacuum mixing , it is suitable for lithium electricity experiment process for anode and cathode paste mixing process, and also other glue, chemical and other industries.

2 The vacuum mixer is with handle wheel, which can uplift the cylinder by hand, without connecting with air compressor.

3 The vacuum mixing machine is programmable in speed, time, and rotating direction, and water cold stainless steel tank promise high efficient in mixing.

4 The TMAX-SVM-1L system vacuum mixing machine is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Specification

Model	Small Size Vacuum Mixer TMAX-SVM-1L
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	750W
Warranty	One Year limited warranty with lifetime support
Mixing speed	0-2800 r/min, Through the inverter speed control
Effective volume	1L, Can also choose 500ml Mixing Jar
Mixing barrel opening mode	Arms straight line guide rail hand cover rising, without connecting air compressor
Mixing barrel size	Φ100mm(Diameter)*140mm(Hight)
Mixing time set	0-99H can be set, with auto stop when time reach
Weight	About 60kg
Dimension(HLW)	600500300mm, 24″20″12″
Advantage	Advanced soft sealing type to keep vacuum pressure maintain on -98kpa up to 24 hours. With time and temperature setting function, Container is opened or closed by electric Hand (no air pump is required any more)
