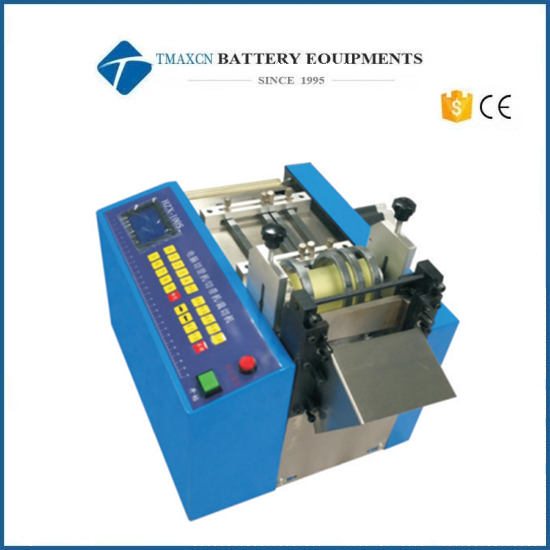

1-100mm Width High Accuracy Lab Automatic Metal Material Cutter Cutting Machine
Model Number:
TMAX-HZX-100SType:
AutomaticInput Power:
0.6kwDimension(L*W*H):
L400*W350*H390mmNet Weight:
32KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915

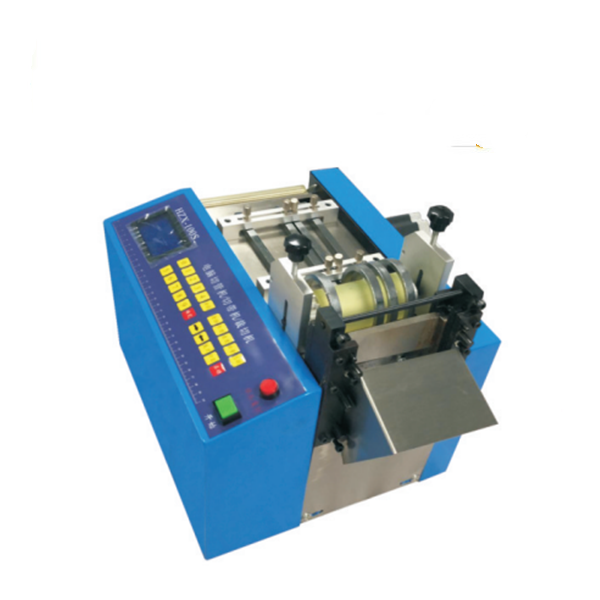

1-100mm Width High Accuracy Lab Automatic Metal Material Cutter Cutting Machine
Features
1. High accuracy:High speed feeding, microcomputer program control accuracy up to 0.1
2. Timing cutting:Batch pause and delay time can be set, no need to watch
3. Quantitative and constant speed cutting:The length and speed can be adjusted continuously to achieve high efficiency
4. Special tools:Completely solve the problem of unevenness of incision: reach the level / degree of incision
5. Model design:The design of the machine conforms to the principle of ergonomics, which is easy to operate and highly automatic
6. Core technology:Motion control system, core technology, suitable for various cutting industries
Cutting Material
Cutting Speed: 100 times minute(50mm length, for example)
Can cut materials: Steel wire, Nickel ally sheet, Welding strip, Iron line, Cable, Coppesheet, Stainless steel wire
Specification
|
Model |
Cutting tool |
Voltage |
Power |
Cutting width |
Cutting length |
Pricision |
|
HZX-100S |
Up and down knife |
110-220V |
0.6kw |
1-100mm |
1-9999mm |
0.1mm |
